Strujni mjerni transformatori natičnog tipa bez primarnog namota
Bus type current transformers without primary windings
Aufsteck-Stromwandler

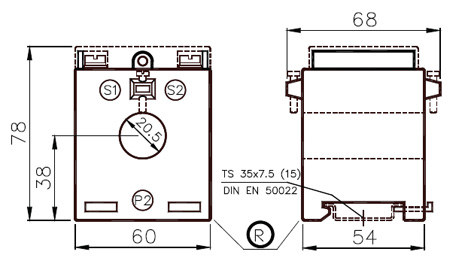

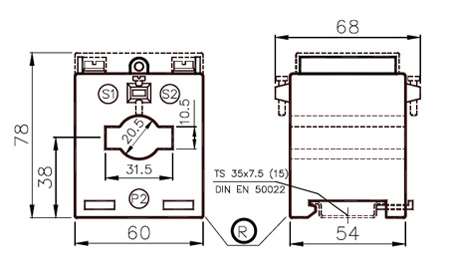

TIP
TYPE
TYP
CTBO
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||
| Primarna struja/Primary current/ Primärstrom (A) | 50 | 60 | 75 | 100 | 150 | 200 | 50 | 300 |
| Nazivni teret/Rated burden/Nennbürde (VA) | 1,25/2,5 | 1,25/2,5 | 1,25/2,5 | 3 | 3 | 5 | 5 | 5 |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 1,0/3,0 | 1,0/3,0 | 1,0/3,0 | 1,0 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |

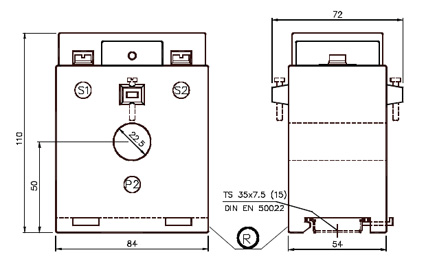

TIP
TYPE
TYP
CTBO/O
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | |||||||||
| Primarna struja/ Primary current/Primärstrom (A) | 50 | 60 | 75 | 100 | 150 | 200 | 250 | 300 | 400 |
| Nazivni teret/ Rated burden/Nennbürde (VA) | 2/3,75 | 2,5/3,75 | 2,5/3,75 | 5 | 5 | 5 | 5 | 5 | 5 |
| Klasa točnosti/ Accuracy class/Genauigkeitsklasse | 1,0/3,0 | 1,0/3,0 | 1,0/3,0 | 1,0 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/ Security factor/Überstrom Begrenzungsfaktor | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |

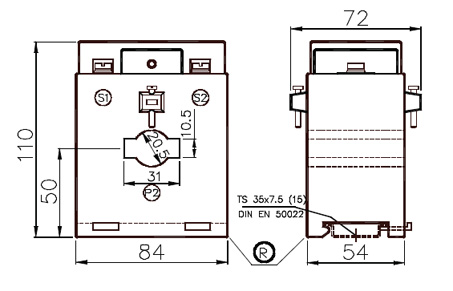

TIP
TYPE
TYP
CTB1
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||||||
| Primarna struja/Primary current/Primärstrom (A) | 50 | 60 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 750 |
| Nazivni teret/Rated burden/ Nennbürde (VA) | 1,25/2,5 | 1,25/2,5 | 3,75/5 | 3,75/5 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5//10 | 5//10 | 5//10 |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 1,0/3,0 | 1,0/3,0 | 1,0/3,0 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 10 | 10 | 10/5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 2,5 | 3 | 5 | 5 | 5 | 5 | 8 | 10 | 10 | |||
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |||

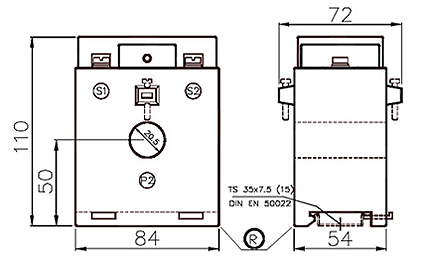

TIP
TYPE
TYP
CTB1/1
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||||||
| Primarna struja/Primary current/Primärstrom (A) | 50 | 60 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 750 |
| Nazivni teret/Rated burden/Nennbürde (VA) | 2,5/5 | 2,5/5 | 3,75/7,5 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5//10 | 5//10 | 5//10 |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 1,0/3,0 | 1,0/3,0 | 1,0/3,0 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 10 | 10 | 10/5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 2,5 | 3 | 5 | 5 | 5 | 5 | 8 | 10 | 10 | |||
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |||
TIP
TYPE
TYP
CTB1/2
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||||||
| Primarna struja/ Primary current/ Primärstrom (A) | 50 | 60 | 75 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 750 |
| Nazivni teret/ Rated burden/ Nennbürde (VA) | 3,75 | 2,5/5 | 3,75/7,5 | 3,75/7,5 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5//10 |
| Klasa točnosti/ Accuracy class/ Genauigkeitsklasse | 3,0 | 1,0/3,0 | 1,0/3,0 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5/1 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/ Security factor/ Überstrom Begrenzungsfaktor | 10 | 10 | 10 | 10/5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Strujni transformator za zaštitu / Protection current transformers/Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 2,5 | 3 | 5 | 5 | 5 | 5 | 8 | 10 | 10 | |||
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |||

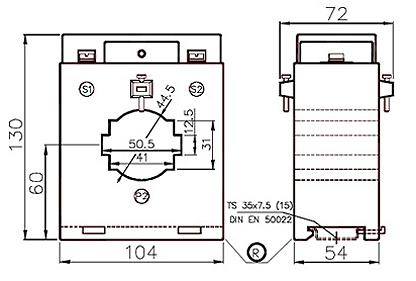

TIP
TYPE
TYP
CTB2
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | Primarna struja/Primary current/Primärstrom (A) | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 750 | 1000 | 1250 | 1500 |
| Nazivni teret/Rated burden/ Nennbürde (VA) | 3/5 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 10/15 | 10/15 | 10/15 | |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 0,5/1 | 0,5/1,0 | 0,5/1,0 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | |
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 2,5 | 2,5 | 2,5 | 5 | 5 | 5 | 10 | 10 | 10 | 10 | 10 | |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |

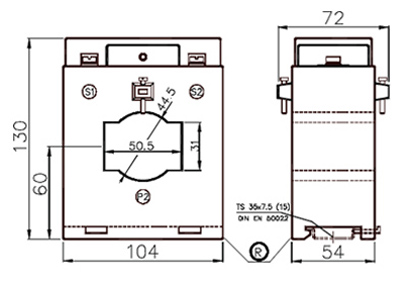

TIP
TYPE
TYP
CTB2P
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||||||
| Primarna struja/Primary current/Primärstrom (A) | 300 | 400 | 500 | 600 | 750 | 1000 | 1250 | 1500 | 1600 | 1800 | 2000 | 2500 |
| Nazivni teret/Rated burden/Nennbürde (VA) | 5 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 10/5 | 10/5 | 10/5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 5 | 5 | 5 | 7,5 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |

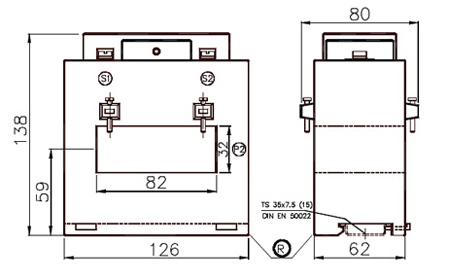

TIP
TYPE
TYP
CTB3
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||||||
| Primarna struja/Primary current/Primärstrom (A) | 300 | 400 | 500 | 600 | 750 | 1000 | 1250 | 1500 | 1600 | 1800 | 2000 | 2500 |
| Nazivni teret/Rated burden/Nennbürde (VA) | 5 | 5/10 | 5/10 | 5/10 | 5/10 | 5/10 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 | 10/15 |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 10/5 | 10/5 | 10/5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 5 | 5 | 5 | 7,5 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |
TIP
TYPE
TYP
CTB4
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | |||||||||||||
| Primarna struja/Primary current/Primärstrom (A) | 300 | 400 | 500 | 600 | 750 | 1000 | 1250 | 1500 | 1600 | 1800 | 2000 | 2500 | 3000 |
| Nazivni teret/Rated burden/Nennbürde (VA) | 5 | 5 | 5/10 | 5/10 | 5/10 | 5/10 | 10/20 | 10/20 | 10/20 | 10/20 | 20-45 | 20-45 | 20-45 |
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 |
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 10 | 10 | 10 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | |||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 7,5 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |||
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | |||

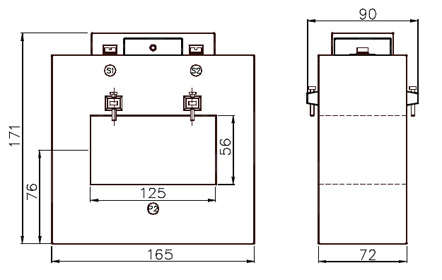

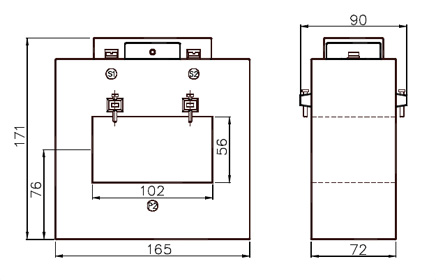

TIP
TYPE
TYP
CTB5
| Strujni transformator za mjerenje / Measuring current transformers / Stromwandler für Messzwecke | ||||||||||||
| Primarna struja/ Primary current/ Primärstrom (A) | 750 | 1000 | 1250 | 1500 | 1600 | 1800 | 2000 | 2500 | 3000 | 4000 | ||
| Nazivni teret/ Rated burden/ Nennbürde (VA) | 5/10 | 5/10 | 5/10 | 10/20 | 10/20 | 10/20 | 10/20 | 20-45 | 20-45 | 20-45 | ||
| Klasa točnosti/ Accuracy class/ Genauigkeitsklasse | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | 0,5 | ||
| Faktor sigurnosti/Security factor/Überstrom Begrenzungsfaktor | 10 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | ||
| Strujni transformator za zaštitu / Protection current transformers / Stromwandler für Schutzzwecke | ||||||||||||
| Nazivni teret/Rated burden/Nennbürde (VA) | 7,5 | 10 | 10 | 10 | 10 | 10 | 10 | 1010 | 10 | 10 | ||
| Klasa točnosti/Accuracy class/Genauigkeitsklasse | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | 10P5 | ||
Za transformatore tehničkih karakteristika koje nisu navedene kontaktirajte nas.
Please do not hesitate to contact us with regard to any further information on transformers.
Für Wandler mit nicht genannten technischen Eigenschaften nehmen Sie bitte Kontakt mit uns auf.
